Customizable Size High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Division

Customizable Size High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Division

Nama merek:	Flyon Sports
Nomor Model:	membagi tirai
Moq:	50 meter persegi
harga:	46-100 dollars per SQM
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	> = 50000 meter persegi/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

SGS/GB-8624

Bahan:

PVC / Kain Bertahan Tinggi

Warna:

Merah, biru, hijau, kuning, putih, abu -abu, dan disesuaikan

UKURAN:

Dapat disesuaikan

Kecepatan mengangkat:

7,5 meter / menit

Pernafasan:

> 45%

Ketahanan Air Mata:

GB/T 3917.3-2009

Kemasan rincian:

Kotak kayu

Menyediakan kemampuan:

> = 50000 meter persegi/bulan

Menyoroti:

Customizable Size Dividing Curtains

High Strength Fabric Divider Curtain

Electric Control System Partition Curtain

Deskripsi Produk

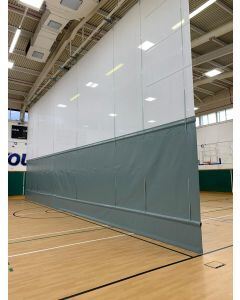

Customizable Size High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Division

Our divider curtain systems provide efficient space division solutions for sports facilities, offering customizable configurations to meet your specific requirements.

Single Curtain System Specifications

Product Name	Divider Curtain	Total Hanging Weight	≤ 2.5 kg/m
Maximum Height	12m	Hanging Spacing	≤ 3m
Maximum Width	36m	Maximum Bearing Capacity (per lifting point)	≤ 80kg
Maximum Area	300m²	Maximum Hanging Weight	≤ 750kg

Color Choices

Model Options

Installation Safety Requirements

Maintain a safety gap of at least 50cm between this partition curtain system and adjacent partition curtains or walls

Leave a safety clearance of at least 15cm on the side without the motor drive system

Ensure at least 5cm clearance between the bottom of the partition curtain and the ground

Electric and Control System

The middle reel features a high-performance drum motor (220V, 450W, 120N/M) with internal meshing planetary gear reducer, upper and lower position brake limiters, button limit switches, automatic reset and thermal overload protection system for stable and reliable operation.

Product Advantages

Double curtains made of high-quality PVC for sound absorption

Partial mesh design allows light transmission

Complete system includes all required materials, parts, and load-bearing aluminum trusses

Environmentally friendly, tear-resistant, high-strength, and fire-resistant materials

Simple to use with multiple customization options available

Project Presentation
