Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation

Nama merek:	FLYON
Nomor Model:	Tirai Pemisah Gedung Olah Raga
Moq:	100
harga:	$77-85

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Tiongkok

Bahan:

serat poliester berkekuatan tinggi atau kain serat kaca+PVC

Tipe Motor:

motor tipe tubular (220V, fase tunggal)

Tenaga motorik:

100 Nm

Tegangan motor:

220 V AC

Diameter motor:

3 kaki

Kecepatan Operasi:

7,5m per menit

Dimensi Penumpukan:

50 cm

Panjang maksimum:

20 M

Luas Maksimum:

125 m²

Sinkronisasi Motorik:

Dua motor tersinkronisasi untuk tirai yang lebih besar

Kontrol Operasi:

Sakelar kunci dan remote nirkabel

Perlindungan berlebihan:

Otomatis

Tabung Bawah:

Empuk

Jenis jahitan:

Jahitan horizontal

Aksi Bergulir:

Mulus

Menyoroti:

Customized Color Divider Curtain

High-Strength Polyester Fiber Dividing Curtain

7.5m per Minute Sports Hall Divider Net

Deskripsi Produk

High-Quality Sports Hall Divider Net for Stadium Ground Division Curtain

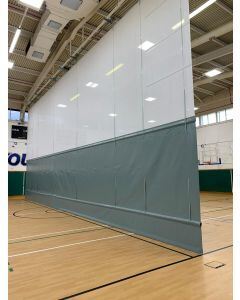

The Center Roll Divider offers a simple overhead design for gymnasiums, eliminating hoist cables, straps, and overhead support rollers while maintaining minimal stack height.

As the aluminum drive tube rotates, it moves the curtain up, rolling both top and bottom sections neatly and compactly to the ceiling. This design eliminates wear points experienced with other dividers and allows the Center-Roll to operate twice as quickly as standard curtains.

The assembly operates extremely quietly, features automatic overheating protection, and is permanently lubricated for maintenance-free operation. When directly attached to the roof structure, this divider provides a stack dimension within 50cm of the ceiling for maximum clearance.

This fast folding action is achieved at 7.5m per minute. Available in solid and mesh, all solid, or all mesh finish configurations.

Product Specifications

Item	Value
Place of Origin	China
Product Name	Sports Hall Dividing Curtains
Color	Customizable
Brand	Flyon
Material	High-strength polyester fiber or glass fiber fabric + PVC
Suitable Places	Gymnasium, school, and basketball court

Motor System Details

Uses 100 Nm, 220 V AC tubular motor(s), 3 feet in diameter.

Tubular-type motor (220V, single-phase) with gear reducer and brake mechanism concealed inside the horizontal batten tube. Motor is equipped with up and down push-button type limit switches and an automatic reset thermal overload protection.

Motor Configuration

Curtains up to 125 m² or 20 m long use single motor. Larger curtains use two synchronized motors.

Includes key switch operation standard. Also available with wireless remote control.

Performance Specifications

Typical stacking dimension is approximately 50 cm. Curtain raises or lowers at a rate of approximately 7.5m per minute.

Available Configurations

Available in a wide variety of vinyl and mesh colors:

Solid and Mesh: Solid and Mesh with Padded Bottom Tube
All Solid: All Solid with Padded Bottom Tube
All Mesh: All Mesh with Padded Bottom Tube

Construction Features

Horizontal seams allow smooth rolling action for optimal performance.

Quality Certifications

Packaging & Shipping

Company Introduction

Flyon has specialized in EPDM and SBR granules production for more than ten years, bringing extensive expertise to sports facility solutions.

Frequently Asked Questions

What is your delivery time?

We have flexible delivery time. For in stock and mass production, it is about 5 working days and 25-35 working days respectively.

Can you provide warranty?

Yes! We provide 5 years' quality warranty and 10 years' backup support.

Can I get your samples?

Yes! Flyon Sports offers free samples for our customers, about 3 days for preparation.

Do you provide OEM service?

Yes! We provide OEM and ODM service.

Contact Information

Website: www.flyonsports.cn

Address: 406 Room B#2013 Creative Marker Park, Lijia Road 108th LongGang District Shenzhen, China

Whatsapp: +86 13534071985

Email: Info@flyonsport.com
