Electric Control System Fireproof Environmental Friendly Divider Curtain for Large Spaces

Nama merek:	Flyon
Nomor Model:	Tirai pembagi
Moq:	50 meter persegi
harga:	46-98 dollars per sqm
Ketentuan Pembayaran:	T/T, Western Union
Kemampuan Penyediaan:	> = 50000 meter persegi/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

SGS/GB-8624 (B2 level)

Bahan:

PVC/ Kain Bertahan Tinggi

Warna:

Permintaan Pelanggan

Pola:

Dapat disesuaikan

Kinerja lingkungan:

GB-18586

Pernafasan:

> 45%

Ketahanan Air Mata:

GB/T 3917.3-2009

Kemasan rincian:

Kotak kayu

Menyediakan kemampuan:

> = 50000 meter persegi/bulan

Menyoroti:

Electric Control System Divider Curtain

Fireproof Partition Curtain

Environmental Friendly Dividing Curtain

Deskripsi Produk

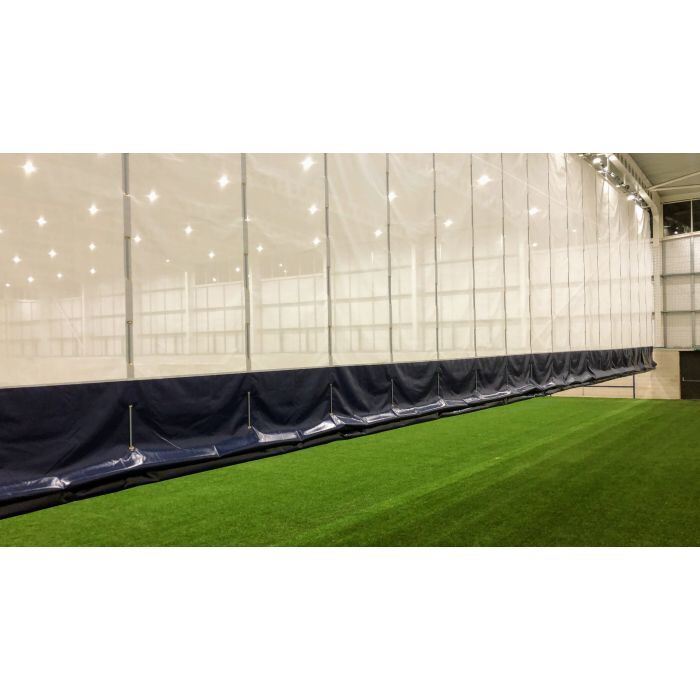

Electric Control System Fireproof Environmental Friendly Divider Curtain for Large Spaces

Single Curtain System Specifications

Product Name	Divider Curtain	Total Hanging Weight	≤ 2.5 kg/m
Maximum Height	12m	Hanging Spacing	≤ 3m
Maximum Width	36m	Maximum Bearing Capacity (per lifting point)	≤ 80kg
Maximum Area	300m²	Maximum Hanging Weight	≤ 750kg

Color Choices

Model Options

Installation Safety Requirements

• A safety gap of at least 50 cm should be reserved between this partition curtain system and the adjacent partition curtain or the wall.
• A safety clearance of at least 15 cm should be left on the side without motor drive system.
• At least 5cm ground clearance shall be reserved between the bottom of the partition curtain and the ground.

Electric Control System

High-performance drum motor (220V, 450W, 120N/M) with internal planetary gear reducer, up-and-down position brake limiter, push-button limit switch, automatic reset and thermal overload protection system integrated in the middle winding drum. Ensures stable and reliable operation.

Product Advantages

Double layer curtain with high quality PVC for superior sound absorption
Partial netting design allows natural light transmission
Complete system includes all necessary materials and segments with aluminum truss carrier structure
Environmentally friendly, tear resistant, high strength, and fireproof construction
Easy to use system available in various configuration options

Project Presentation

Special discounts available for new and existing customers. Contact us for specific pricing information.
